Streamlit on Ilum - Spark Integration & Kubernetes Deployment

Streamlit Banner

Streamlit is an open-source Python framework designed for building interactive data applications and dashboards with minimal effort. It enables data scientists and engineers to transform data scripts into shareable web applications in minutes, without requiring extensive knowledge of frontend frameworks like React or Vue.

في سياق إيلوم , Streamlit serves as a powerful frontend layer for your Big Data infrastructure. It allows you to expose complex Apache Spark computations, real-time data streams, and machine learning models through a user-friendly interface, bridging the gap between raw data processing and business intelligence.

Architecture: Streamlit in a Cloud-Native Spark Ecosystem​

When deployed within Ilum, Streamlit operates as a microservice inside your Kubernetes cluster. This architecture provides several technical advantages for data engineering workflows:

  • Proximity to Data: Running within the same cluster as your Spark Executors minimizes latency when transferring large datasets for visualization.
  • Unified Security: The application enables seamless integration with internal network policies and RBAC controls.
  • قابلية التوسع: Kubernetes handles the orchestration, ensuring your dashboard remains available even under load.

Integration Patterns​

Since Streamlit is Python-based, it offers flexible integration points with the Ilum ecosystem. Below are the primary architectural patterns for connecting your dashboard to your data infrastructure.

1. Spark Connect Integration​

This is the most powerful integration method. By using سبارك كونكت , your Streamlit app acts as a client that submits DataFrame operations directly to the Ilum Spark Cluster. This decouples the client (Streamlit) from the heavy processing (Spark Executors).

استورد  streamlit مثل  st
من بايسبارك . SQL استورد جلسة سبارك

@st. cache_resource
مواطنه  get_spark_session( ) :
    أعاد جلسة سبارك . بان\
        . بعيد ( "sc://spark-connect-service:15002") \
        . getOrCreate ( )

شراره =  get_spark_session( )

st. subheader( "Big Data Query")
# This operation runs on the Spark Cluster, not the Streamlit pod
مدافع = شراره . SQL ( "SELECT category, count(*) as count FROM sales GROUP BY category")
st. bar_chart( مدافع . toPandas( ) )

2. Ilum Public API Control Plane​

You can use Streamlit to build a custom "Job Launcher" or "Control Plane". Instead of processing data, the app sends HTTP requests to Ilum's API to trigger asynchronous jobs, manage schedules, or retrieve execution logs.

استورد  streamlit مثل  st
استورد  requests

ILUM_API =  "http://ilum-api-service:8080"

مواطنه  trigger_job( job_name,  params) :
    response =  requests. منصب (
        f"{ ILUM_API} /api/v1/jobs/{ job_name} /launch",
        json= params
    )
    أعاد  response. status_code ==  200

لو  st. زر ( "Start ETL Pipeline") :
    success =  trigger_job( "nightly-batch",  { "date":  "2023-10-27"} )
    لو  success:
        st. success( "Pipeline triggered successfully!")

3. JDBC/ODBC for Data Lake Analytics​

For low-latency queries on Delta Lake, Iceberg, or Hudi tables, you can connect Streamlit to إيلوم SQL using standard JDBC drivers. This allows you to treat your data lake as a standard relational database.

4. Livy Proxy Execution​

For scenarios requiring dynamic code submission, Streamlit can post code snippets to the Livy Proxy. This is useful for building "Notebook-like" interfaces where users can submit custom logic to be executed on the cluster.

Developing High-Performance Data Apps​

Streamlit is favored for quick prototyping and exploratory data analysis (EDA) because of its declarative API. Below are the core concepts and best practices for building scalable apps in Ilum.

1. Basic Application Structure​

You can install the framework using Python’s package manager: pip install streamlit.

A minimal valid application requires just a few lines of code. Save this as app.py:

استورد  streamlit مثل  st

st. title( "Hello Ilum!")
st. يكتب ( "This is a Streamlit app running on a Kubernetes cluster.")

Run it locally to test:

streamlit run app.py

Output preview: Streamlit Title App

2. Visualizing Dataframes​

Streamlit’s strength comes from its deep integration with the PyData stack (Pandas, NumPy, Arrow). It natively renders interactive charts.

استورد  streamlit مثل  st
استورد  pandas مثل  pd
استورد  numpy مثل  np

# Generate sample data
chart_data =  pd. إطار البيانات (
    np. عشوائي . randn( 20 ,  3 ) ,
    columns= [ 'a',  'b',  'c']
)

st. header( "Interactive Data Visualization")
st. line_chart( chart_data)

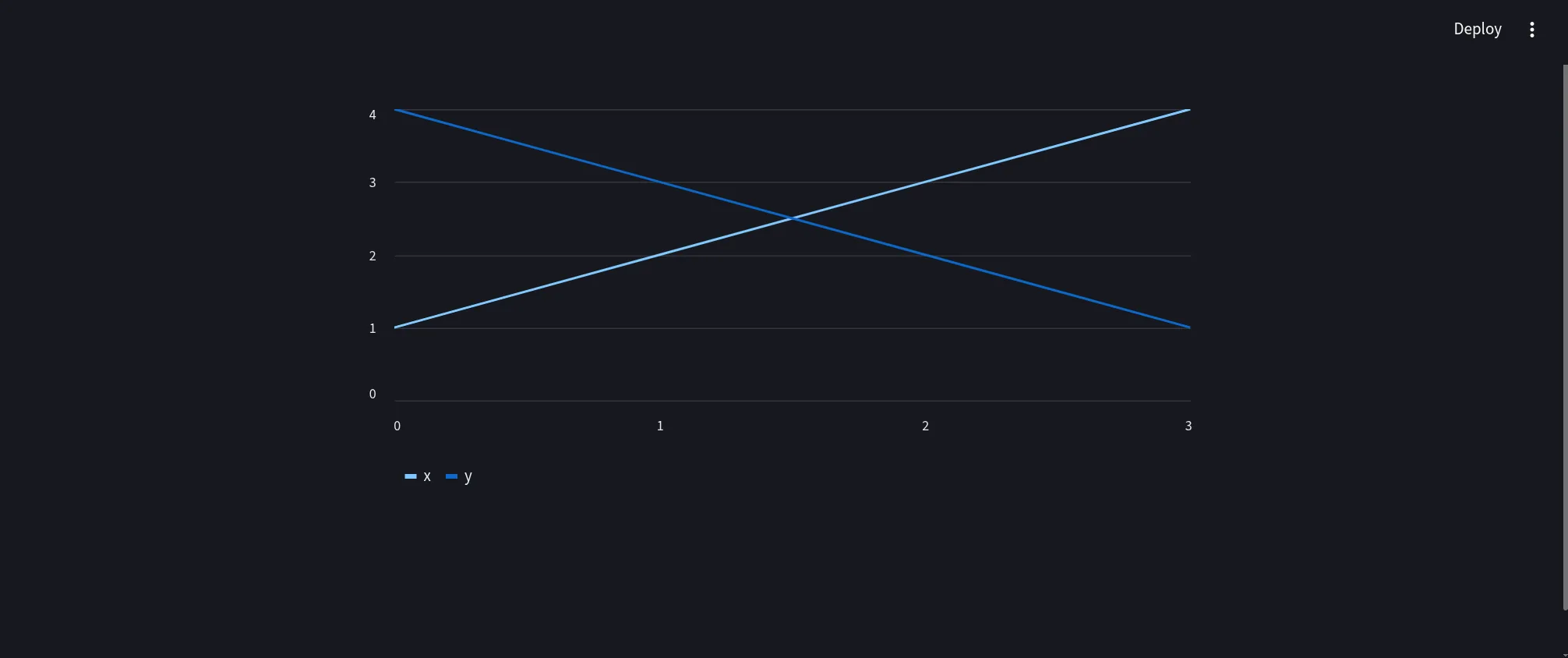

Result: Streamlit Dataframe Visualization The displayed chart is fully interactive. Users can zoom, pan, and inspect individual data points.

3. Advanced Component Usage​

For enterprise dashboards, you will likely need input widgets to filter data or trigger jobs.

استورد  streamlit مثل  st
استورد  pandas مثل  pd
استورد  numpy مثل  np
استورد  time

# Title and layout configuration
st. set_page_config( page_title= "Ilum Dashboard",  layout= "wide")

st. title( "🎨 Ilum Control Panel")
st. تخفيض السعر ( "### Monitor and control your Spark workloads")

# Input widgets in a sidebar
مع  st. sidebar:
    st. header( "Configuration")
    environment =  st. selectbox(
        "Select Environment",  [ "Production",  "Staging",  "Development"]
    )
    job_timeout =  st. slider( "Job Timeout (seconds)",  60 ,  3600 ,  600)
    enable_logs =  st. checkbox( "Show Verbose Logs", قيمة = صحيح )

# Main layout columns
كول 1 , كولو2 =  st. columns( 2 )

مع كول 1 :
    st. subheader( "📝 Job Parameters")
    job_name =  st. text_input( "Job Name",  "daily_etl_process")
    upload_config =  st. file_uploader( "Upload Configuration (JSON/YAML)")

مع كولو2 :
    st. subheader( "📊 Resource Usage")
    # Simulating data for display
المقاييس =  pd. إطار البيانات ( {
        "CPU Usage":  np. عشوائي . uniform( 20 ,  80,  10 ) ,
        "Memory Usage":  np. عشوائي . uniform( 40,  90,  10 )
    } )
    st. area_chart( المقاييس )

# Action Buttons and Feedback
st. divider( )
لو  st. زر ( "🚀 Trigger Spark Job",  نوع = "primary") :
    مع  st. spinner( "Submitting job to Ilum Scheduler...") :
        time. sleep( 1.5)  # Simulate API call latency

    st. success( f"Job **{ job_name} ** started successfully in { environment} !")
    st. معلومات ( "Job ID: `spark-job-12345-xyz`")

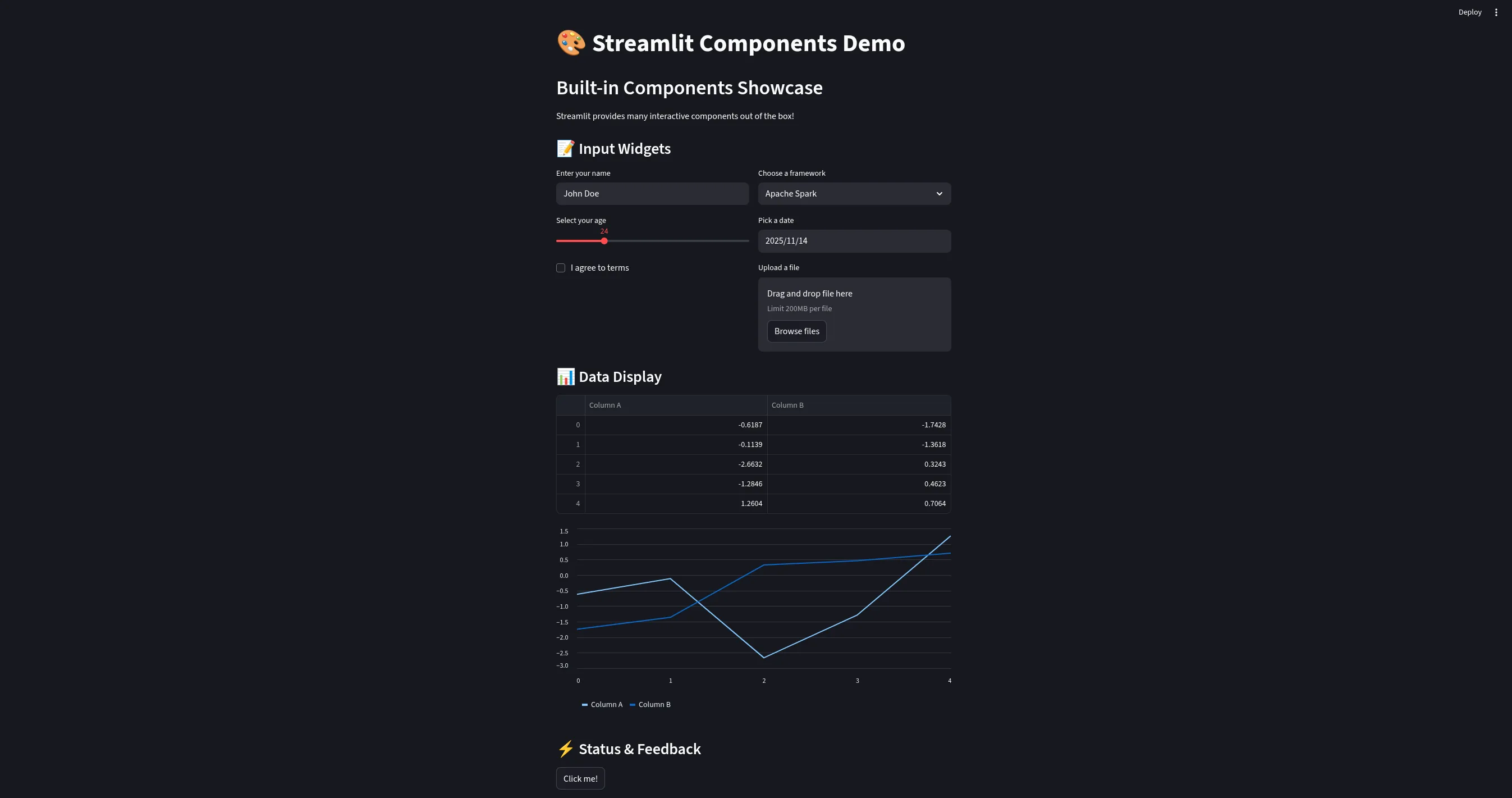

The resulting UI provides a professional control interface: Streamlit Components Demo

4. Performance Optimization: Caching and State​

When working with Big Data, efficiency is critical. Streamlit provides mechanisms to manage computational resources effectively.

Caching Strategies​

استخدام @st.cache_data for serializable data objects (like Pandas DataFrames) and @st.cache_resource for connections (like Spark Sessions or Database connections).

@st. cache_data( ttl= 3600 )   # Cache data for 1 hour
مواطنه  get_large_dataset( ) :
    # This expensive operation runs only once per hour
    # independent of how many users view the app
    أعاد  pd. read_parquet( "s3://my-data-lake/heavy-table/")

مدافع =  get_large_dataset( )
st. dataframe( مدافع )

Session State​

For multi-step workflows (e.g., a wizard for submitting a Spark job), use st.session_state to persist variables across re-runs.

لو  'job_id' لا  في  st. session_state:
    st. session_state. job_id =  None

لو  st. زر ( "إرسال" ) :
    st. session_state. job_id =  submit_spark_job( )

لو  st. session_state. job_id:
    st. يكتب ( f"Tracking job: { st. session_state. job_id} " )

Production Deployment in Ilum​

Transitioning from a local script to a production service involves containerizing the application and configuring the Kubernetes deployment manifest.

1. Docker Containerization​

Create a optimized دوكر فايل that includes your application code and dependencies.

# Use a slim python image to reduce attack surface and image size
من  python:3.11-slim

# Set working directory
WORKDIR /app

# Install system dependencies if needed (e.g., for pyodbc or specialized libraries)
# RUN apt-get update && apt-get install -y gcc

# Copy requirements first to leverage Docker layer caching
نسخ  requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt

# Copy application code
نسخ  streamlit_app.py .
نسخ  .streamlit/ .streamlit/

# Expose the default Streamlit port
EXPOSE 8501

# Healthcheck to ensure the container is responsive
HEALTHCHECK CMD curl --fail http://localhost:8501/_stcore/health

# Run the application
نقطة الدخول [ "streamlit", "run", "streamlit_app.py", "--server.port=8501", "--server.address=0.0.0.0"]

2. Helm Configuration​

To deploy your container within the Ilum stack, update your Helm values. This configuration allows you to define resource quotas, ensuring your dashboard doesn't consume excessive cluster resources.

streamlit:
  تمكين :  صحيح

  صورة :
    مستودع :  my- registry/ilum- لوحه القياده
    العلامه :  v1.0.0
    pullPolicy :  Always

  # Define resource limits to guarantee stability
  موارد :
    requests:
      cpu:  500m
      memory:  512Mi
    limits:
      cpu:  2000m
      memory:  2Gi

  # Environment variables for application configuration
  الحياه الفطريه :
    -  اسم :  SPARK_MASTER_URL
      قيمة :  "k8s://https://kubernetes.default.svc"
    -  اسم :  ILUM_API_URL
      قيمة :  "http://ilum-api-service:8080"

3. Troubleshooting & Observability​

If your Streamlit application fails to connect to Spark or Ilum services, check the following:

  • Network Policies: Ensure your Kubernetes NetworkPolicies allow traffic from the Streamlit namespace to the Spark namespace.
  • Service DNS: Use the fully qualified domain name (FQDN) for internal services, e.g., spark-connect-service.ilum.svc.cluster.local.
  • Logs: Retrieve application logs using kubectl logs -l app=streamlit -n ilum to debug Python exceptions or connection timeouts.

Once deployed, Ilum manages the lifecycle of the Streamlit pod, ensuring your interactive data applications are always accessible to your team.
