Ilum's Jupyter via VS Code on Local Machine

This guide explains how to connect your local VS Code installation to Ilum's Jupyter kernel, allowing you to work with Ilum notebooks directly from your preferred development environment while using Ilum's Spark clusters and data infrastructure.

المتطلبات المسبقه ​

Before you begin, ensure you have the following:

  • Local VS Code Installation: Download and install VS Code on your machine
  • VS Code Extensions:
  • kubectl Access: Configured access to your Ilum cluster with appropriate permissions
  • Ilum JupyterLab Service: The Ilum JupyterLab service should be running in your cluster

Methods of connecting to Ilum's JupyterLab​

There are two primary ways to connect VS Code to Ilum. Choose the method that best fits your workflow:

ميزة Method 1: Jupyter Server URL (HTTP)Method 2: SSH Tunnel
أفضل ل Quick access, simple setup, firewalled environmentsFull development experience, terminal usage, file management
Setup ComplexityLow (Port-forward only)Medium (Requires SSH keys & config)
File ManagementManual upload/download requiredDirect access to remote filesystem
Performance"Remote" feel (slight latency)"Local" feel (native performance)
المتطلبات كوبيكتل ولوج كوبيكتل access + SSH client

1. Connect via Jupyter Server URL​

Connects VS Code to the running Jupyter server via HTTP. This is the simplest method for quick tasks or when SSH ports are blocked.

2. Connect via SSH Tunnel​

Connects VS Code directly to the Jupyter pod using SSH. This provides a robust remote development environment where VS Code runs directly on the remote pod.

Connect via Jupyter Server URL​

Step 1: Expose the Jupyter Service​

First, you need to expose the Ilum JupyterLab service to your local machine. You have several options:

Port Forwarding (Recommended):

Port Forward
المنفذ إلى الأمام SVC / ILUM-Jupyter 8888: 8888

This command creates a secure tunnel from your local machine's port 8888 to the Ilum JupyterLab service. Keep this terminal session open while working with the notebooks.

Step 2: Create or Open a Notebook File​

In VS Code, create a new file with the .ipynb extension or open an existing Jupyter notebook file.

Step 3: Select Kernel​

Once you have a notebook file open, click on the "Select Kernel" button in the top-right corner of the notebook interface.

Select Kernel in VS Code

Step 4: Choose Existing Jupyter Server​

From the kernel selection menu, select the "Existing Jupyter Server" option.

Choose Existing Jupyter Server option

Step 5: Enter Remote URL​

You'll be prompted to specify the URL of the running Jupyter server. Enter one of the following connection URLs:

Local URL
http://localhost:8888/external/jupyter
Enter the remote Jupyter Server URL

Step 6: Allow HTTP Connection​

VS Code will show a security warning about connecting over HTTP without a token. Since this is a secure port-forward connection to your trusted Ilum cluster, click "Yes" to allow the HTTP connection.

Allow HTTP connection security prompt

Step 7: Select the Python Kernel​

Finally, choose the "ipykernel" option from the available kernels. This will be the Python kernel from your Ilum JupyterLab environment.

Select the remote ipykernel

Working with Remote Spark Kernels​

Once connected, you can write and execute notebook cells just as you would in Ilum's JupyterLab interface. The code runs remotely on the Ilum cluster, giving you immediate access to:

  • Interactive Spark Clusters: Use Sparkmagic commands like النسبة المئوية manage_spark و ٪٪شرارة to control Spark sessions.
  • Cloud Data Storage: Access your Ilum data volumes and S3/MinIO storage directly from code. For easier file management, see the VS Code MinIO Integration Guide.
  • Pre-configured Libraries: All pre-installed libraries and packages from the Ilum Docker environment.
  • Scalable Resources: Computational resources allocated to your Ilum workspace.

Example: Running Interactive Spark Jobs in VS Code​

Spark Example
# Load sparkmagic extension
% load_ext سباركماجيك . السحر

# Start a Spark session using Sparkmagic
% manage_spark

# Run Spark code
% % شراره
القضبان = SC . موازاة ( [ 1 ,  2 ,  3 ,  4 ,  5 ,  6 ,  7 ,  8 ,  9 ,  10 ] )
    طبع ( القضبان . عد ( ) )

Using IlumIntro Tutorials Locally​

You can access and work with the IlumIntro tutorial notebooks that are available in your Ilum JupyterLab environment. These notebooks provide guided examples and tutorials for using Ilum's features.

To work with IlumIntro notebooks:

  1. Access from JupyterLab: First, open the IlumIntro notebooks in your Ilum JupyterLab interface
  2. Export to Local: Download the notebook files (.ipynb ) to your local machine
  3. Open in VS Code: Open these files in VS Code using the connection established above
  4. Work Locally: Edit and run the notebooks in VS Code while maintaining the connection to Ilum's compute resources

For more information about IlumIntro notebooks and tutorials, see the Notebook Usage Guide.

Import/Export Workflow for Notebooks​

Exporting from JupyterLab to VS Code​

  1. In Ilum JupyterLab, right-click on the notebook file.
  2. Select "Download" to save the .ipynb file to your local machine.
  3. Open the downloaded file in VS Code.
  4. Follow the connection steps above to link it to your Ilum kernel.

Importing from VS Code to JupyterLab​

  1. Save your notebook in VS Code (Ctrl+S / Cmd+S)
  2. Upload the .ipynb file to your Ilum JupyterLab workspace:
    • Use the file browser in JupyterLab
    • Click the upload button and select your notebook file
    • Alternatively, use Git if your workspace is connected to version control

استكشاف الاخطاء ​

Click to expand troubleshooting steps

Connection Issues​

  • Port already in use: If port 8888 is busy, use a different local port:

    Port Forward Override
    kubectl port-forward svc/ilum-jupyter 8889:8888

    Then use http://localhost:8889/external/jupyter in VS Code.

  • الخدمة غير موجودة : Verify the correct service name and namespace:

    Get Jupyter Service
    kubectl get svc | grep jupyter

Kernel Issues​

  • Kernel not starting: Ensure the port-forward connection is active and the URL is correct
  • Authentication errors: Verify that your kubectl context has the necessary permissions
  • Library not found: Remember that code executes on the Ilum cluster, so only libraries available in the Ilum environment can be used

Performance Considerations​

  • Network latency: Code execution happens remotely, so there may be slight delays compared to local execution
  • Large outputs: Avoid displaying very large datasets directly; use .head(), .sample(), or similar methods
  • Session management: Close unused kernels to free up cluster resources

Security Notes​

  • All code execution happens within your Ilum cluster's security boundaries
  • No sensitive data is transmitted outside your cluster environment
  • Always use trusted networks when establishing these connections

Connect via SSH Tunnel​

This section provides a template for connecting to Ilum's Jupyter environments directly via VS Code's Remote-SSH extension. This approach allows you to work directly within the pod environment rather than connecting to the Jupyter server via HTTP.

Prerequisites for Remote-SSH Connection​

Step 1: Enable SSH mode in JupyterLab deployment​

Firstly we need to generate secret with SSH keys and enable SSH access in the Jupyter deployment. You can accomplish this by upgrading the Helm release with SSH enabled.

Generate SSH keys if you don't have them already:

Generate Keys
mkdir -p jupyter-ssh-keys
cd jupyter-ssh-keys

# Generate RSA, ECDSA, and ED25519 host keys
ssh-keygen -t rsa -b 4096 -f ssh_host_rsa_key -N ""
ssh-keygen -t ecdsa -b 521 -f ssh_host_ecdsa_key -N ""
ssh-keygen -t ed25519 -f ssh_host_ed25519_key -N ""

# Optional: create authorized_keys for jovyan user
ssh-keygen -t ed25519 -C "ilum-jupyter" -f jovyan_id_ed25519 -N ""
cp jovyan_id_ed25519.pub authorized_keys

This command will create all keys needed for SSH. Now in jupyter-ssh-keys you have:

  • ssh_host_rsa_key
  • ssh_host_rsa_key.pub
  • ssh_host_ecdsa_key
  • ssh_host_ecdsa_key.pub
  • ssh_host_ed25519_key
  • ssh_host_ed25519_key.pub
  • authorized_keys
  • jovyan_id_ed25519
  • jovyan_id_ed25519.pub

Now we have to create kubernetes secret with these keys:

Create Secret
kubectl create secret generic ilum-jupyter-ssh-keys \
  --from-file=ssh_host_rsa_key=ssh_host_rsa_key \
  --from-file=ssh_host_ecdsa_key=ssh_host_ecdsa_key \
  --from-file=ssh_host_ed25519_key=ssh_host_ed25519_key \
  --from-file=authorized_keys=authorized_keys

Then upgrade the Helm release with SSH enabled:

Upgrade Helm
ترقية Helm ilum ilum / ilum \
    --set ilum-jupyter.ssh.enabled=true \
    --set ilum-jupyter.ssh.sshdConfig.customConfig[0]="StrictModes no" \
    --set ilum-jupyter.resources.limits.memory=3Gi \
    --set ilum-jupyter.resources.requests.memory=2Gi \
--إعادة استخدام القيم

Step 2: Configure SSH Connection​

In file ~/.ssh/config, add a new host configuration for the Jupyter pod. By default, ilum-jupyter in ssh mode exposes ssh with nodePort service, but you can also utilize port-forwarding to access the pod. Here is an exemplary configuration. Fill the HostName, مستخدم , Portو IdentityFile fields according to your setup:

Fetch the service to find the NodePort (the port mapped on the node, e.g., 31309):

Get SSH Service
kubectl get svc ilum-jupyter-ssh

Then, find the Node IP address where the cluster is running. Run the following command to list nodes and their IPs:

Get Nodes
kubectl الحصول على العقد -o واسعة

Pick the INTERNAL-IP(أو EXTERNAL-IP if you are connecting from outside the cluster network) of any active node.

Use this Node IP as the HostName and the NodePort as the Port in your SSH config.

Add to your SSH config (~/.ssh/config):

~/.ssh/config
Host ilum-jupyter
    HostName <node_ip_address>
    User jovyan
    Port <nodeport_from_svc>
    IdentityFile (path to directory created above/jovyan_id_ed25519, eg. ~/jupyter-ssh-keys/jovyan_id_ed25519)
    IdentitiesOnly yes
    StrictHostKeyChecking no

Step 3: Connect via VS Code​

  1. Open VS Code Command Palette (Ctrl+Shift+P / Cmd+Shift+P)
  2. Type "Remote-SSH: Connect to Host"
  3. Select your configured host: ilum-jupyter
  4. VS Code will open a new window connected to the pod environment

Step 4: Configure VS Code for Jupyter​

  1. Continue on fingerprint information
Confirm SSH fingerprint in VS Code
  1. Open folder /home/jovyan in the remote window
Open remote folder in VS Code
  1. Install VS Code Extensions in SSH remote window (Python, Jupyter)

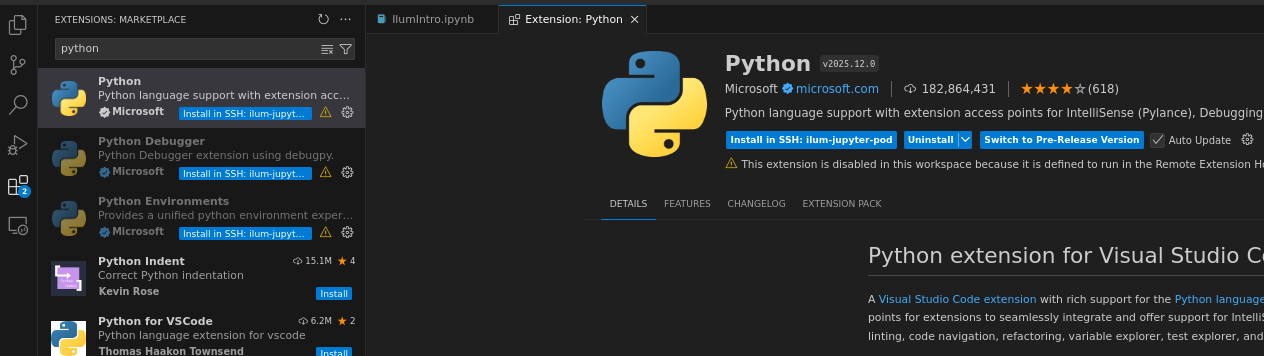

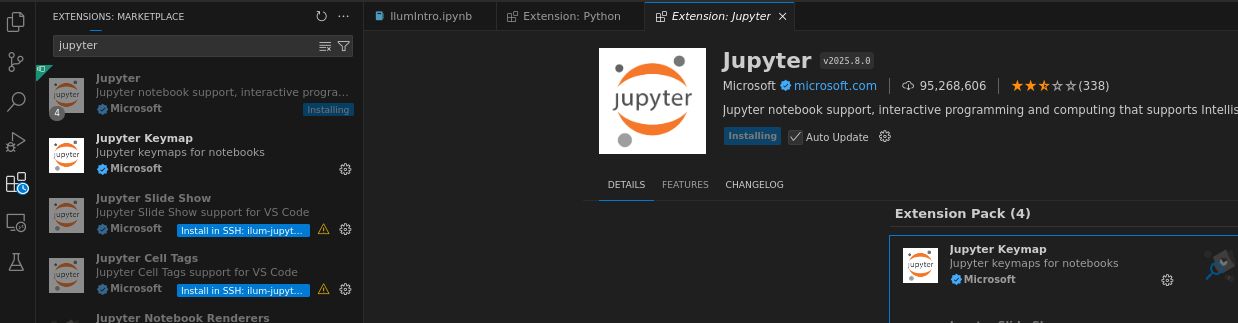

Install Python extension on remote host Install Jupyter extension on remote host

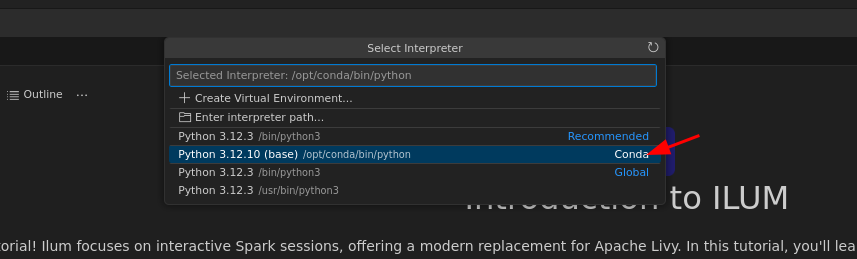

  1. Select the Python interpreter in the remote window (Python 3)
Select remote Python interpreter

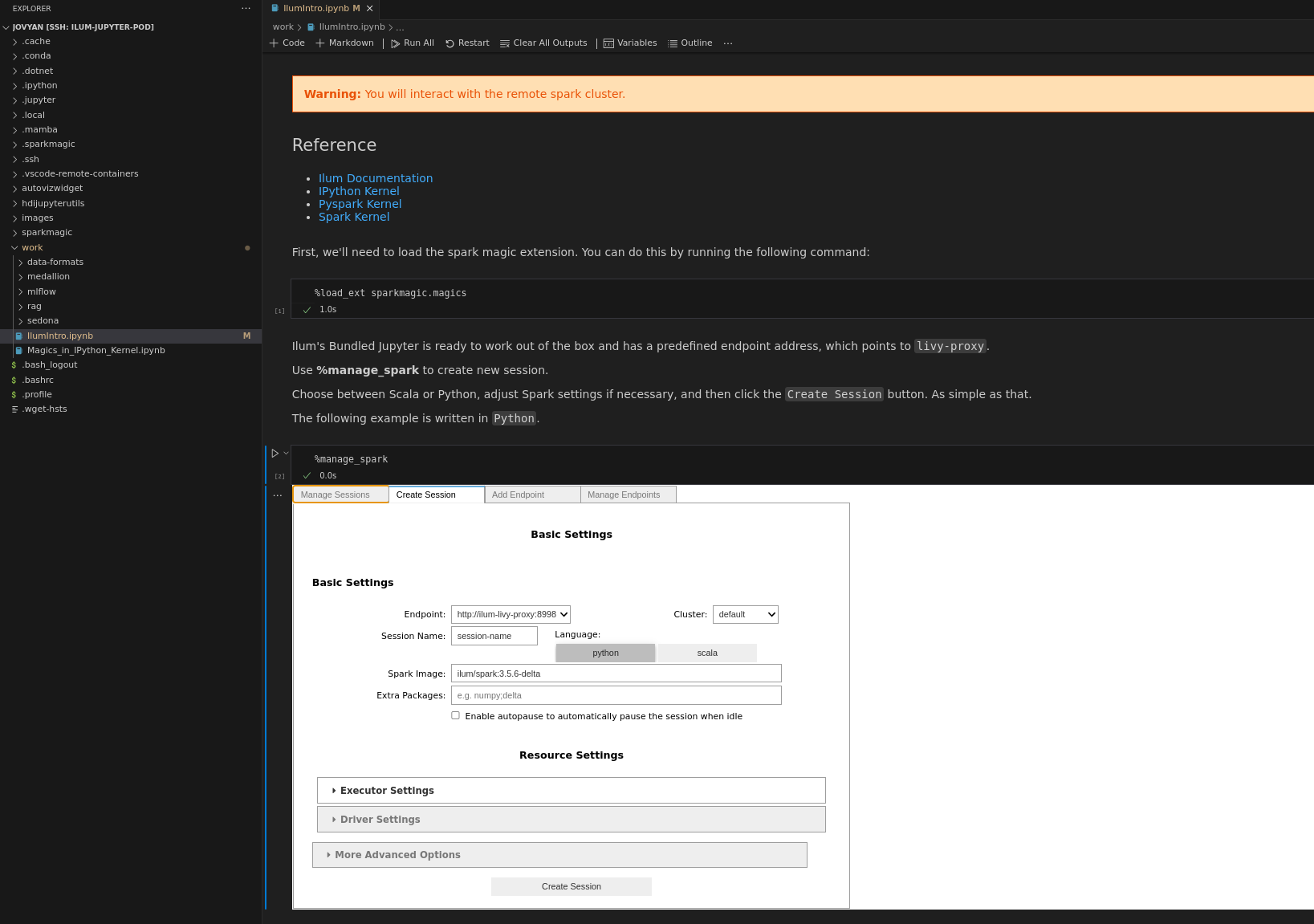

  1. With kernel selected, you can now create or open .ipynb files and run code directly in the Jupyter pod environment.
Working with remote notebooks in VS Code
  1. You can monitor all of your workloads in the JupyterLab interface as well. Spark session started from VS Code will appear in the ILUM UI.

Benefits of the Remote-SSH Method​

  • Direct Pod Access: Work directly within the Kubernetes Jupyter pod environment.
  • Full Filesystem Access: Browse and edit all files and directories in the remote pod via the VS Code sidebar.
  • Native Performance: No network latency for file operations or terminal usage.
  • Rich Development Environment: Full access to installed CLI tools, packages, and extensions running on the pod.

Considerations​

  • Network configuration: Requires proper SSH access and network routing to the cluster
  • أمن : Ensure SSH access follows your organization's security policies
  • Pod lifecycle: Connection will be lost if the pod restarts or gets rescheduled
  • Resource sharing: Multiple SSH connections share the same pod resources
ملاحظه

The specific implementation details will vary based on your cluster configuration, network setup, and security requirements. This template should be customized according to your environment.

استكشاف الاخطاء ​

Click to expand troubleshooting steps

Connection Issues - disconnections​

  • SSH connection drops: Ensure jupyter pod has adequate resources as ssh might be resource consuming, you can always manipulate resources in the Helm chart values and upgrade the release.
  • Firewall issues: Ensure that your local machine can reach the cluster nodes on the specified SSH port
  • Incorrect SSH config: Double-check the ~/.ssh/config entries for typos or incorrect values
  • Permission Denied: If you see PermissionDenied (publickey), ensure you have added --set ilum-jupyter.ssh.sshdConfig.customConfig[0]="StrictModes no" to your helm upgrade command. This is often required because Kubernetes mounted secrets may not have the strict file permissions (0600) required by default SSH configurations.

Kernel Issues​

  • Kernel not starting: Ensure the SSH connection is active and the Python interpreter is correctly set
  • Extensions not working: Make sure the required VS Code extensions are installed in the remote environment, in case of jupyter pod restart you might need to reinstall them
  • Kernel not responding / Instability: VS Code automatically installs extensions on the remote Jupyter server, which can significantly increase memory usage. If you experience kernel unresponsiveness or connection drops, this is often due to OOM (Out Of Memory) kills. Try increasing the memory limits (e.g., to 3Gi or more) as shown in the configuration step.
  • Library not found: Remember that code executes in the Jupyter pod, so only libraries available in that environment can be used

Performance Considerations​

  • Network latency: While file operations are local to the pod, any external network calls will still be subject to latency
  • Resource limits: Be aware of the resource limits of the Jupyter pod, as multiple users or heavy workloads can impact performance
  • Session management: Close unused connections to free up pod resources

Security Notes​

  • All code execution happens within your Ilum cluster's security boundaries
  • No sensitive data is transmitted outside your cluster environment
  • Always use trusted networks when establishing these connections

الخطوات التالية ​

Once you have VS Code successfully connected to your Ilum JupyterLab environment, explore:

Support​

For additional help or questions about VS Code integration with Ilum, contact us at [البريد الإلكتروني محمي] or refer to our Help documentation.
