أمان OAuth2

نظره عامه ​

OAuth2 with OpenID Connect (OIDC) is a powerful protocol that lets you delegate user authentication to a dedicated server. Instead of managing usernames and passwords in every application, you can use a central identity provider.

When a user tries to log into Ilum, they’re sent over to the authentication server’s login page. After they sign in successfully, they’re redirected back to Ilum with a special JWT token. This token is proof of their identity.

This approach is a game-changer in a microservices world. Ilum leverages this by supporting OAuth2 with OIDC. When a user logs in for the first time, Ilum inspects their JWT token, pulls out key information, and creates a corresponding user and group profile in its own database. You can then assign permissions to these groups, and any user who is part of that group automatically gets the right access.

To get this working, you need to tell Ilum how to map the data from the JWT token to its user fields and provide the connection details for your OAuth2 server in the Helm configuration.

Quick Start Guide​

This guide will walk you through setting up OAuth2 in Ilum from scratch. To make things concrete, we’ll use a few tools:

• Minikube: We’ll assume you’re running Kubernetes locally with Minikube. We’ll use its Ingress and DNS features to make our Keycloak instance accessible.
• Keycloak: An open-source identity and access management server that supports both OAuth2 and OIDC. It will act as our authentication server.
• mkcert: A handy tool for creating locally trusted development certificates. Ilum requires a secure TLS connection to the OAuth2 server, and mkcert makes generating a self-signed certificate a breeze.

Our goal is to make Keycloak available at the URL https://auth.test. Both your browser and the Ilum pods inside the cluster need to reach Keycloak using this exact same address for the authentication flow to work correctly.

Step 1: Create a TLS Certificate for Keycloak​

First up, let’s generate a self-signed TLS certificate for our Keycloak server.

1. Run mkcert to create the certificate files for auth.test:

   mkcert auth.test


   This command creates two files: auth.test.pem (the certificate) and auth.test-key.pem (the private key).

2. Now, create two Kubernetes secrets. The first one will hold the TLS certificate for the Ingress, and the second will store the Certificate Authority (CA) so Ilum can trust our self-signed certificate.

   # Secret for the Ingress controller
   kubectl create secret tls auth-test-mkcert --cert=auth.test.pem --key=auth.test-key.pem

   # Secret for Ilum's trust store
   kubectl create secret generic ca-mkcert --from-file=ca.crt=auth.test.pem


Step 2: Set Up Minikube Ingress and DNS​

For your local machine to resolve auth.test to your Minikube cluster, you need to configure Minikube’s Ingress and DNS. This setup varies by operating system, so it’s best to follow the official Minikube documentation. This is a crucial step to ensure your browser can find the Keycloak login page.

Follow steps 1 to 4 in the guide and optionally test the DNS resolution.

Step 3: Install and Expose Keycloak​

With the networking prerequisites out of the way, let’s deploy Keycloak.

1. The quickest way to get Keycloak running is by applying the official all-in-one YAML file:

   kubectl إنشاء -f https://raw.githubusercontent.com/keycloak/keycloak-quickstarts/refs/heads/main/kubernetes/keycloak.yaml


2. Next, create an Ingress resource to expose Keycloak at https://auth.test. Create a file named keycloak-ingress.yaml with this content:

   apiVersion :  networking.k8s.io/v1
   نوع :  Ingress
   البيانات الوصفية :
     اسم : عباءة المفتاح - مدخل
     التعليقات التوضيحيه :
       nginx.ingress.kubernetes.io/ssl-redirect:  "صحيح"
   المواصفات :
     tls:
     -  hosts:
       -  auth.test # Our chosen domain
       اسم سري : المصادقه - test- mkcert # The TLS secret we created
     rules:
     -  مضيف :  auth.test
       HTTP :
         paths:
         -  مسار : /
           pathType: بادئه
           backend:
             خدمة :
               اسم : عباءة المفتاح
               ميناء :
                 number:  8080


   Apply it with kubectl apply -f keycloak-ingress.yaml.

You should now be able to access the Keycloak UI at https://auth.test. Your browser will likely show a security warning because the certificate is self-signed. You can safely proceed.

mkcert -install

Step 4: Configure Keycloak​

Now it’s time to configure Keycloak for Ilum.

Log in to the Keycloak Administration Console with the default credentials: المسؤول:مشرف

For this guide, we’ll use the default أحسن realm.

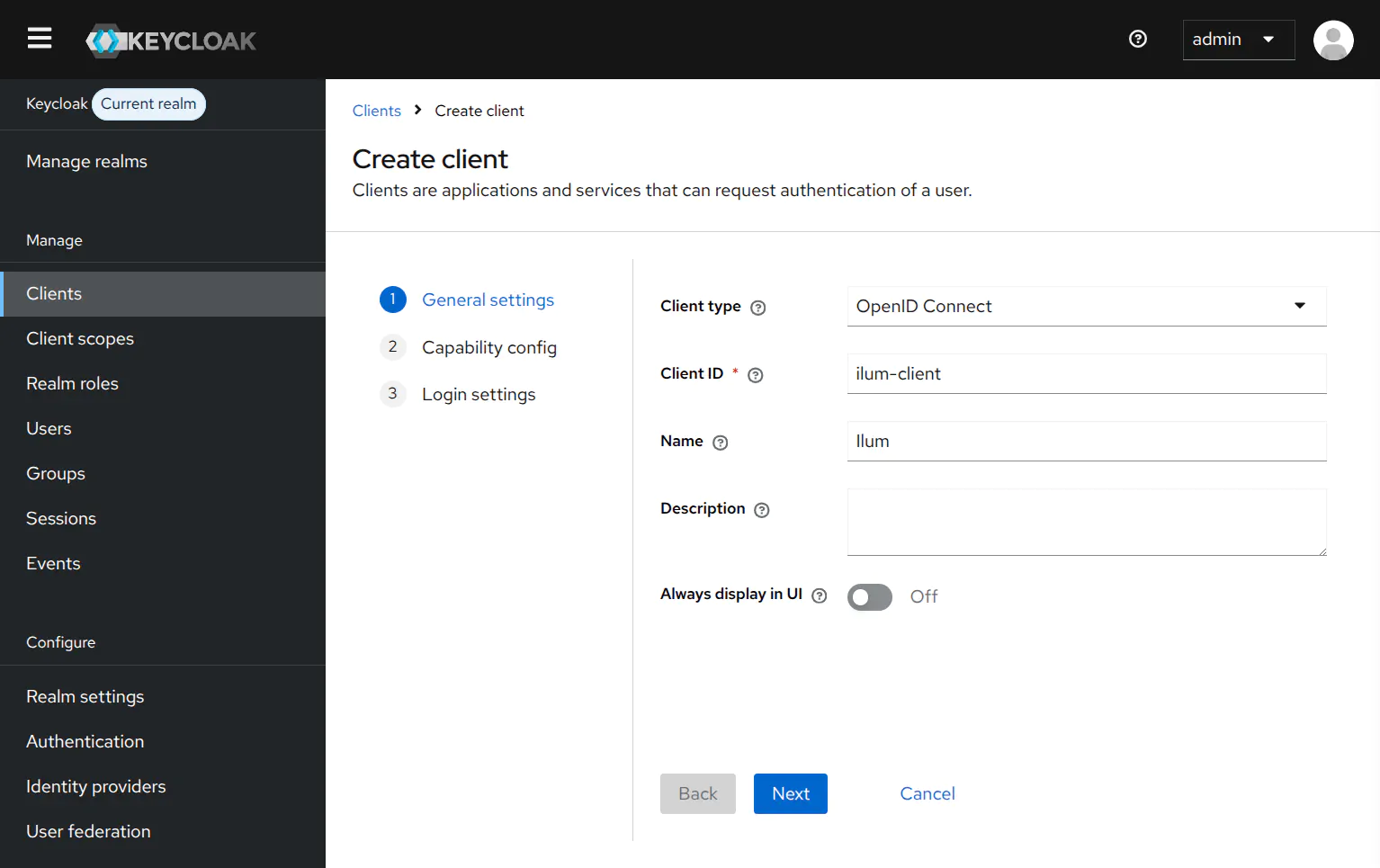

1. Create a Client for Ilum Navigate to العملاء and click Create client. A client in Keycloak represents an application that will use it for authentication—in this case, Ilum.

   Set the Client IDل عميل ILUM . The name can be anything you like

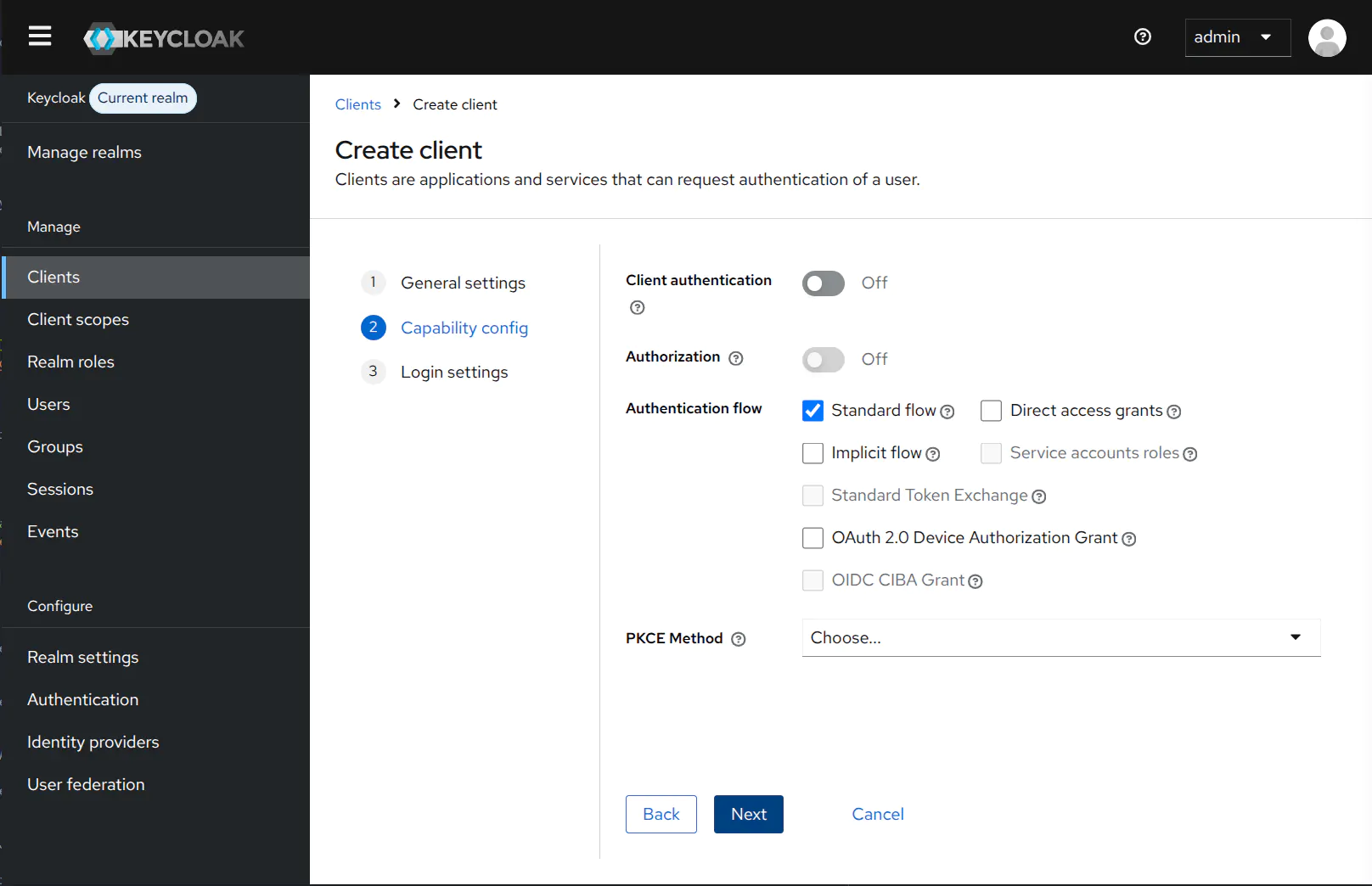

   Keep the default capability settings

   caution

   It’s crucial to leave Client authentication switched Off. Ilum uses the OAuth2 PKCE flow, which is a more secure method for public clients (like a web UI) and doesn’t require a client secret.

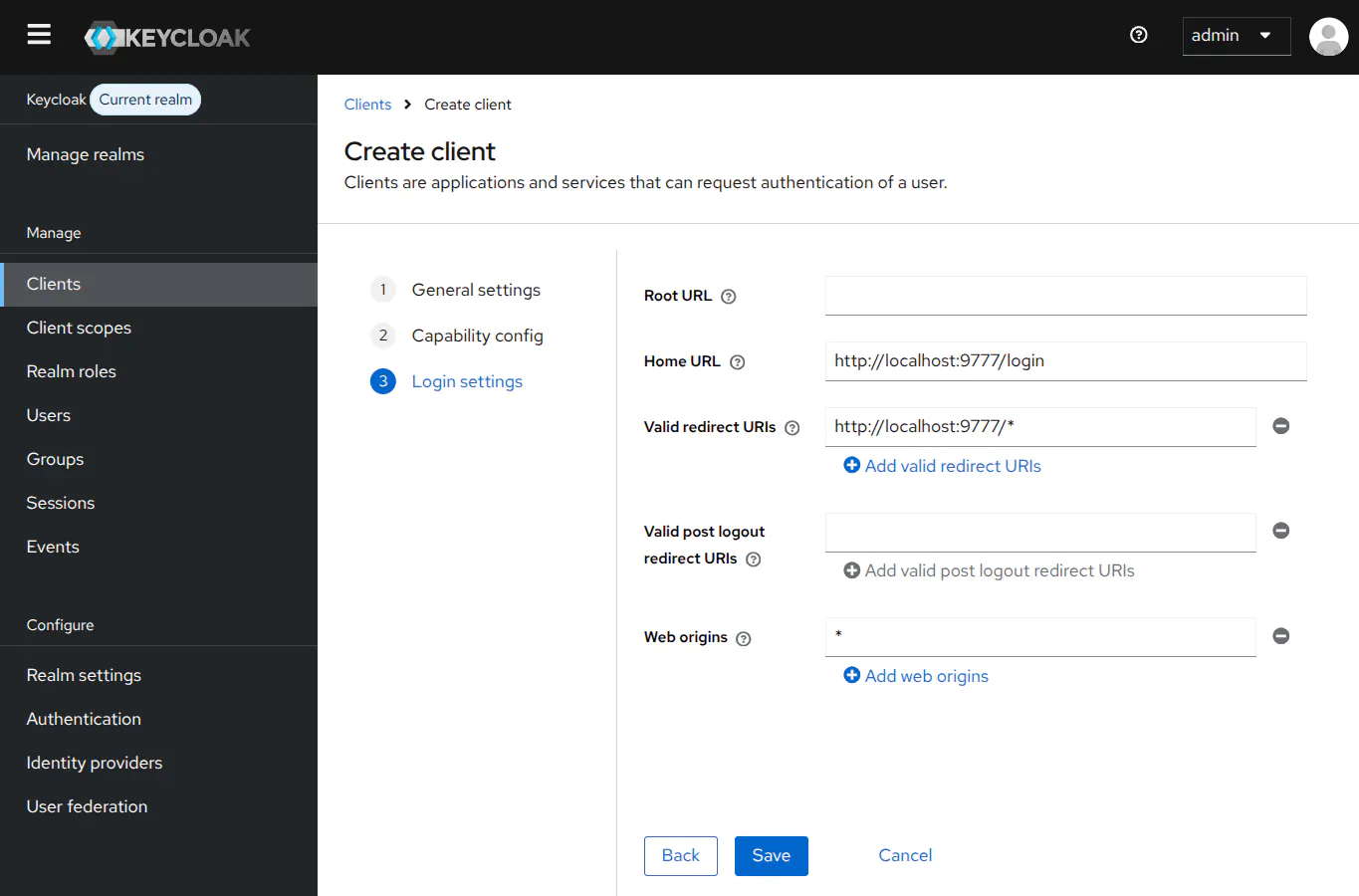

   Set the home URI to the login page and the redirect URI to handle anything which comes from Ilum’s origin

   Save the client.

2. Create a Sample Userانتقل إلى Users section and click Add user. Fill out the form to create your first user. After creating the user, go to their Credentials tab and set a password.

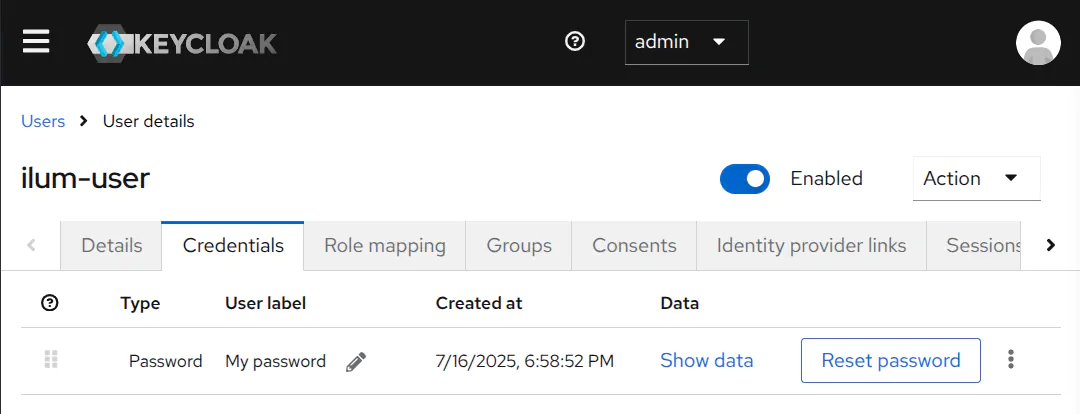

   This is what the credentials tab should look like after setting a password

Step 5: Configure Ilum​

The final step is to update your Ilum Helm deployment with the OAuth2 configuration. Add the following settings to your القيم.yaml ملف:

عالمي :
  أمن :
    أووث2 :
      معرف العميل : إيلوم - عميل # The Client ID we set in Keycloak
      المصدر أوري : https : //auth.test/realms/master # The issuer URI for the Keycloak realm

إيلوم :
  إيلوم كور :
    أمن :
      نوع : أووث2 # Switch the authentication type to OAuth2
      أووث2 :
        مسؤولالمستخدمون :  # Grant admin privileges to these users upon first login
          - المشرف
          -  my- مستخدم # The username you created in Keycloak
        تعيين :  # Map JWT claims to Ilum user fields
          معرف : الفرعي
          اسم : preferred_username
          الاسم الكامل : اسم
          البريد الإلكتروني : البريد الإلكتروني
          تمكين :  email_verified
          # More mapping fields are available. See the section below or the ArtifactHub page.

      TrustStore :  # Trust our self-signed CA so Ilum can connect to Keycloak securely
        تمكين :  صحيح
        طريقة :  single
        اسم سري :  ca- mkcert # The secret containing our CA certificate
        single:
          caSecretFileName : كاليفورنيا CRT # The key in the secret that holds the CA cert

Now, apply the changes to your Ilum installation.

Step 6: Try It Out!​

Everything is set up! To access the Ilum UI, forward the port from the service:

المنفذ إلى الأمام SVC / ILUM-UI 9777: 9777

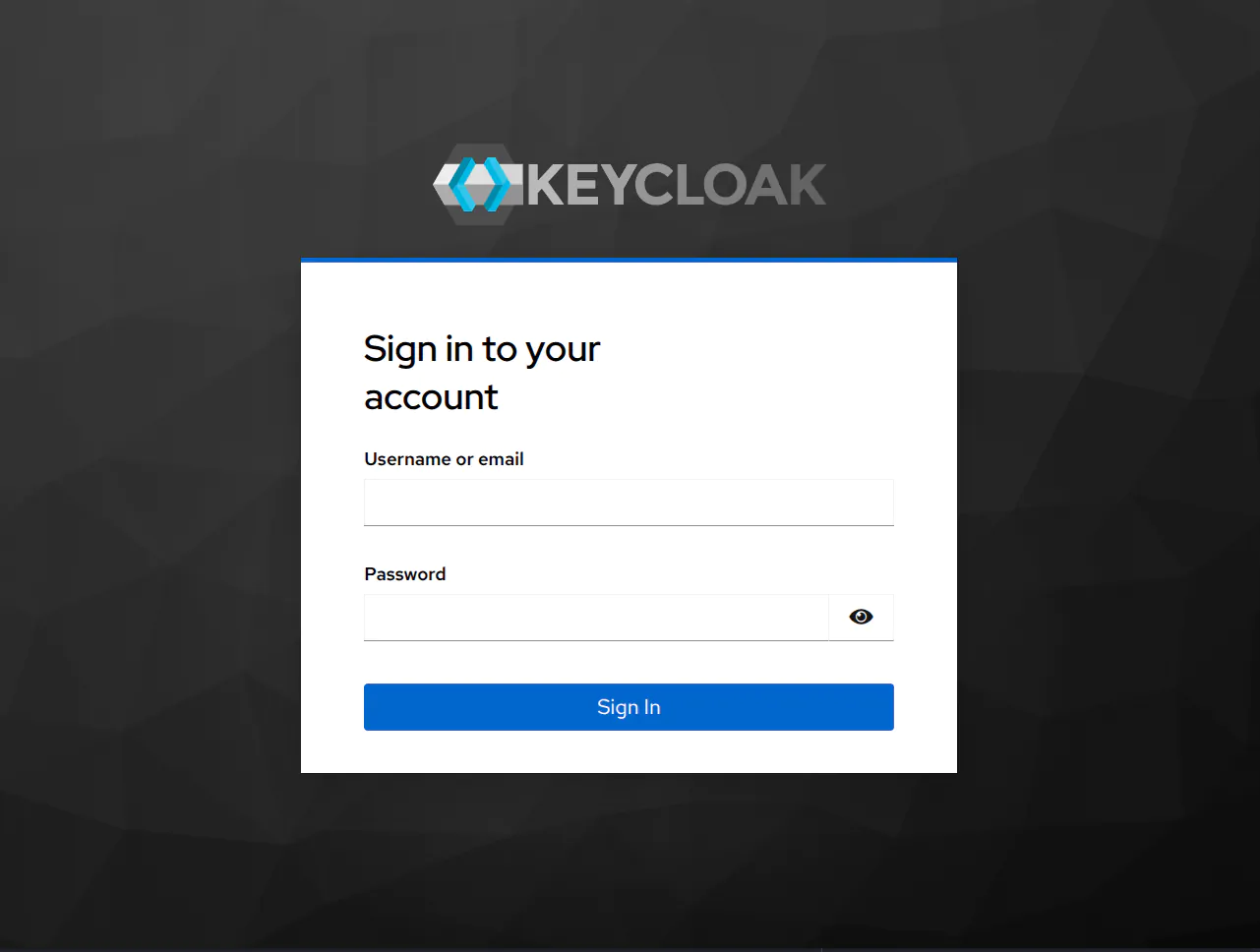

Navigate to http://localhost:9777 in your browser. You’ll be redirected to the Keycloak login page. After you log in, you’ll be sent back to Ilum, fully authenticated!

OAuth2 with External Providers​

Ilum supports OAuth2 authentication with external providers like Google, Microsoft, Okta, and others. The method Ilum uses is designed to work exclusively with OpenID Connect (OIDC) providers.

To set up an external OAuth2 provider, you need to get a Client ID and the issuer URI from your provider. When using an external provider, it is also necessary for both the provider and Ilum to be exposed over HTTPS and visible to each other. Without this, the authentication flow will not work correctly.

Make sure your provider’s authentication method supports OIDC and the PKCE flow. You can usually set this by configuring Ilum as a عميل عام , a Single-page application (SPA), or an OAuth 2.1 capable application in your provider’s settings.

Once you have the Client ID and issuer URI, plug them into your Ilum Helm chart:

عالمي :
  أمن :
    أووث2 :
      معرف العميل :  your- عميل - معرف
      المصدر أوري : https : //your- oidc- provider.com/
      # Optional: Scopes to request from the OAuth2 provider
      # scope: "openid profile email" # <-- these are the defaults

AWS Cognito Configuration​

Cognito fully supports OpenID Connect and works seamlessly with Ilum using the Authorization Code flow with PKCE. To enable it, you need to configure your Cognito User Pool App Client as a Public Client.

Setting up AWS Cognito requires pointing to the right user pool federation endpoints using your service’s قطر و USER_POOL_ID .

1. Navigate to AWS Console → Cognito → User Pools
2. Select your User Pool → App Integration → App Clients
3. Create or edit App Client:
   • Application type: Set this to Public client
   • Client Secret: As we are using a Public Client, this should be "Don’t generate a client secret".
   • Authentication flows: Enable "Authorization code grant"
   • OAuth 2.0 grant types: Select "Authorization code"
   • OpenID Connect scopes: Select openid, profile, البريد الإلكتروني
   • Callback URLs: Add https://your-ilum-domain.com/workloads/list/services

Then, update your Ilum Helm chart:

عالمي :
  أمن :
    أووث2 :
      معرف العميل :  your- cognito- التطبيق - عميل - معرف
      المصدر أوري : https : //cognito- idp.REGION.amazonaws.com/USER_POOL_ID

إيلوم كور :
  أمن :
    نوع : أووث2

Now you can deploy Ilum or customize your user claim mappings as described ادناه .

Google Cloud Platform Configuration​

To set up OAuth2 with Google Cloud Platform (GCP), you need to set Ilum up as a Single-page application (SPA) in the Google Cloud Console.

1. Navigate to Google Cloud Console → APIs & Services → Credentials
2. Click "Create Credentials" → OAuth 2.0 Client IDs
3. Configure application:
   • Application type: Single-page application (SPA)
   • اسم : Enter descriptive name (e.g., "Ilum")
   • Authorized JavaScript origins: Add https://your-ilum-domain.com
   • Authorized redirect URIs: Add https://your-ilum-domain.com/workloads/list/services
4. Note the generated Client ID

After creating the OAuth 2.0 Client ID, configure your Ilum Helm chart:

عالمي :
  أمن :
    أووث2 :
      معرف العميل :  your- google- عميل - معرف
      المصدر أوري : https : //accounts.google.com
إيلوم كور :
  أمن :
    نوع : أووث2

Now you can deploy Ilum or customize your user claim mappings as described ادناه .

Microsoft Azure Entra ID Configuration​

To set up OAuth2 with Microsoft Azure Entra ID, you need to register Ilum as an application in the Azure portal.

1. Navigate to Azure Portal → App Registrations
2. Click "New registration" or select an existing app
3. Configure application:
   • اسم : Enter descriptive name (e.g., "Ilum")
   • Supported account types: Choose the appropriate option for your organization
   • Redirect URI: Select "Single-page application (SPA)" and add https://your-ilum-domain.com/workloads/list/services
4. After creation, go to Manifest and set "requestedAccessTokenVersion": 2
5. الانتقال إلى API permissions → Add permissions → Microsoft Graph → Delegated permissions:
   • Add at least openid, profileو البريد الإلكتروني اذونات
6. Note the Application (client) ID from the Overview page

After registering the app, configure your Ilum Helm chart:

عالمي :
  أمن :
    أووث2 :
      معرف العميل :  your- azure- عميل - معرف
      المصدر أوري : https : //login.microsoftonline.com/TENANT_ID/v2.0 # Replace TENANT_ID with your tenant ID or domain

إيلوم كور :
  أمن :
    نوع : أووث2

Now you can deploy Ilum or customize your user claim mappings as described ادناه .

GitLab Configuration​

GitLab OAuth2 integration provides seamless authentication using GitLab as the identity provider. This integration supports both GitLab.com and self-hosted GitLab instances, making it ideal for organizations already using GitLab for their development workflows.

1. Navigate to your GitLab instance (GitLab.com or self-hosted)
2. الانتقال إلى User Settings → Applications (for personal apps) or Admin Area → Applications (for instance-wide apps)
3. نقر New Application and configure:
   • اسم : Enter descriptive name (e.g., "Ilum")
   • Redirect URI: Add https://your-ilum-domain.com/workloads/list/services
   • Confidential: Uncheck this option (configures as Public Client)
   • Scopes: Select openid, profile, البريد الإلكتروني , and optionally read_user
4. Note the generated Application ID

After creating the application, configure your Ilum Helm chart:

عالمي :
  أمن :
    أووث2 :
      معرف العميل :  your- gitlab- عميل - معرف
      المصدر أوري : https : //gitlab.com # Use your GitLab instance URL if self-hosted
إيلوم كور :
  أمن :
    نوع : أووث2

Now you can deploy Ilum or customize your user claim mappings as described ادناه .

OAuth2 Configuration Options​

Here are all the parameters you can customize in the OAuth2 setup:

عالمي :
  lineage:
    تمكين :  خطأ
  أمن :
    أووث2 :
      audiences:  # Optional: A list of valid audiences for the JWT token
      معرف العميل :  # The Client ID from your OAuth2 provider
      scope:  # Optional: Scopes to request from the provider (e.g., "openid profile email")
      المصدر أوري :  # The issuer URI of your OAuth2 provider

إيلوم كور :
  أمن :
    نوع : أووث2 # Set to "oauth2" to enable it
    أووث2 :
      مسؤولالمستخدمون :  [ ]  # List of usernames to grant admin privileges upon first login
      تعيين :
        معرف :  # The JWT claim for the user ID
        اسم :  # The JWT claim for the username
        البريد الإلكتروني :  # The JWT claim for the user's email
        الاسم الكامل :  # The JWT claim for the user's full name
        وصف :  # The JWT claim for the user's description
        قسم :  # The JWT claim for the user's department
        المجموعات :  # The JWT claim for user groups (array)
        ادوار :  # The JWT claim for user roles (array)
        مجموعة واحدة :  # The JWT claim for a single user group (string)
        singleRole :  # The JWT claim for a single user role (string)
        تمكين :  # The JWT claim that indicates if the user is enabled
        enabledصحيح :  # The value of the enabled claim that means the user is enabled
